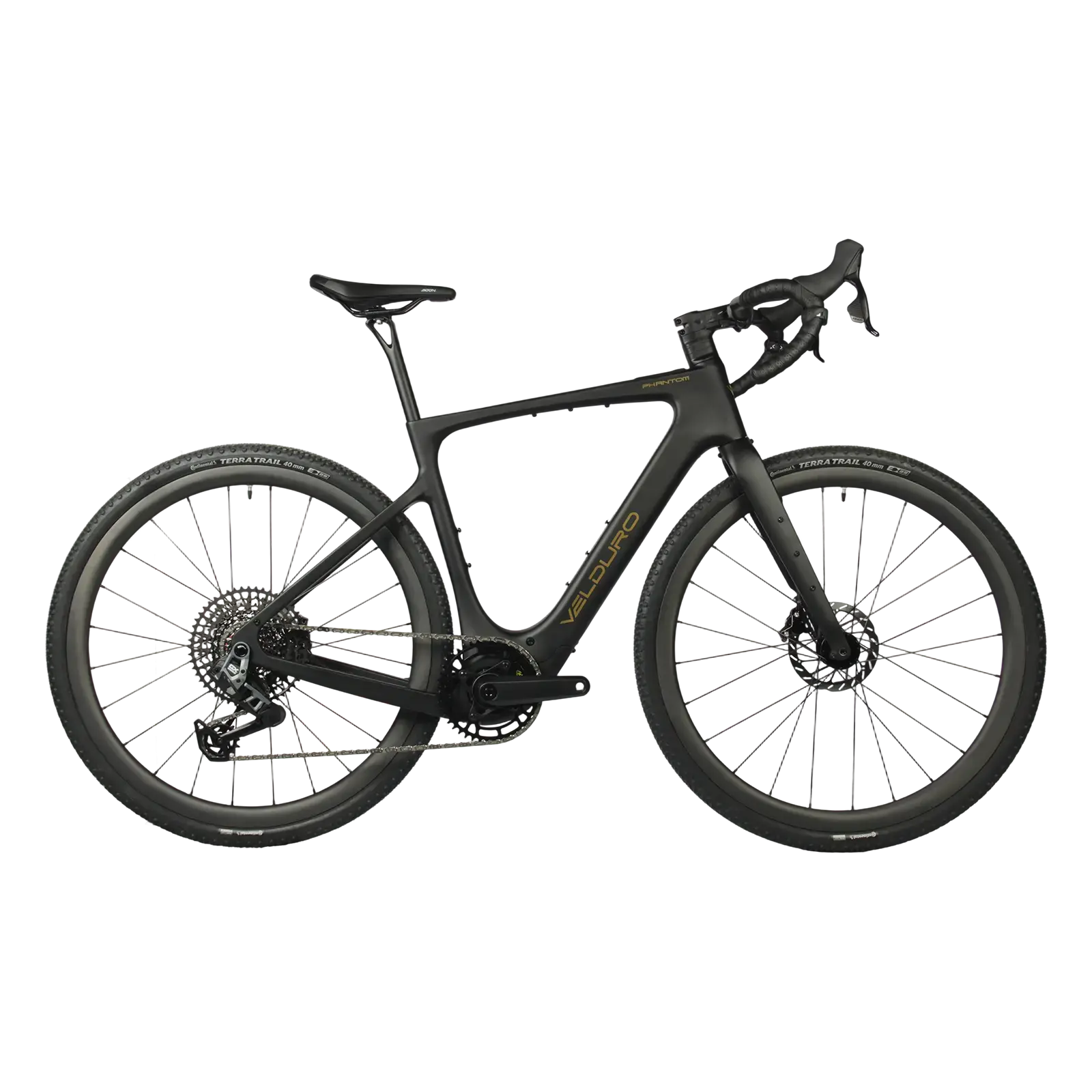

Our Award-Winning e-gravel machine has not compromised on weight, strength, quality, or tyre size. We have collaborated with gravel riders to create the ultimate ride, allowing them the freedom to explore and conquer any terrain put in front of them. The combination of our light-weight carbon frame, gear set and powered by the DJI Avinox motor system makes the Phantom the fastest and most versatile e-gravel bike on the market.
Size: Small, Medium, Large, Xtra Large
- Frame: Carbon fibre, gravel category, battery integrated, inner cable routing, 12X142mm, 8
mounting points, rack compatible - Fork: Carbon gravel fork, 6 mounting points, 12X100mm, offset 50mm
- Headset: FSA NO.55R 1.5″ / 558 ACR, Alloy gravel, dia top& bottom 52mm
- Stem: FSA SMR Alloy -6° alloy Length S:70mm M:80mm, L:90mm, XL:100mm
- Saddle: Fizik Terra Aidon X5
- Seatpost: Velduro carbon Dia27.2 380mm
- Handlebar: Velduro Carbon, Dia31.8, Flare 15°, Width: S/M 420mm, L/XL: 440mm
- Straps: Velduro black gravel strap
- Brakes: Sram Rival AXS HRD Shift-Brake System
- Discs: Srame HS2 extreme duty disc, front 160mm, rear 160mm
- Rear derailleur: Sram Rival XPLR AXS Rear Derailleur with power cable
- Cassette: Sram Rival XPLR XG-1351 13-speed Cassette
- Cranks: Avinox SL 165mm
- Chain: Sram Rival Transmission Flattop Chain
- Spider: Avinox 104BCD spider
- Chainwheel: Velduro customized alloy 44T, 3mm inward
- For NZ only:
Chainwheel: Lekkie one-piece CNC 44T, 3mm inward, without spider
- Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
- Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, XDR freehub
- Rims: 700C, Velduro Carbon, UD black, 13G*24H, 24mm inner width, 35mm depth, with hook
- Tires: Maxxis Rambler 700*45C BLK, with tube
*Your Phantom is tubeless-ready, but comes with tubes.
For New Zealand only :
- Wheelset: Easton EC70 AX carbon gravel wheels, 24mm inner width, 21mm depth, XDR freehub
- Tires: Maxxis Rambler 700*45C BLK, with tube
*Your Phantom is tubeless-ready, but comes with tubes.
- Motor: Avinox M1 36V 105Nm 850W, boost to 120nm 1000W
- Battery: Avinox 600Wh integrated
- Display: Avniox DP100 integrated 2-inch display
- Button: Avinox BC100 Wireless control left&right
- Charger: Avinox 4A charger
- Cables: Avinox customized Waterproof and foolproof wiring
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 466 | 486 | 506 | 526 |
| B | Top Tube Horizontal (mm) | 520 | 534 | 551 | 565 |
| C | Top Tube Actual (mm) | 495 | 515 | 534 | 548 |
| D | Head Tube Angle (°) | 70 | 70.5 | 71 | 71 |
| E | Seat Tube Angle (°) | 74.4 | 74.1 | 73.6 | 73.6 |
| F | Standover (mm) | 772 | 785 | 815 | 830 |
| G | Head Tube Length (mm) | 135 | 147 | 159 | 179 |
| H | Wheelbase (mm) | 1015 | 1019 | 1030 | 1040 |
| I | Front Center (mm) | 600 | 605 | 606 | 620 |
| J | Chain Stay Length (mm) | 425 | 425 | 430 | 430 |
| K | Bottom Bracket Drop (mm) | 72.5 | 72.5 | 72.5 | 72.5 |
| L | Bottom Bracket Height (mm) | 283 | 283 | 283 | 283 |
| M | Fork Rake (mm) | 50 | 50 | 50 | 50 |
| N | Trail (mm) | 64 | 63 | 63 | 63 |
| O | Stack (mm) | 554 | 567 | 581 | 600 |
| P | Reach (mm) | 366 | 372 | 377 | 385 |
| Q | Axle to Crown (mm) | 395 | 395 | 395 | 395 |
| Recommended Height | 160-170 | 172-182 | 180-188 | 185-195 | |
