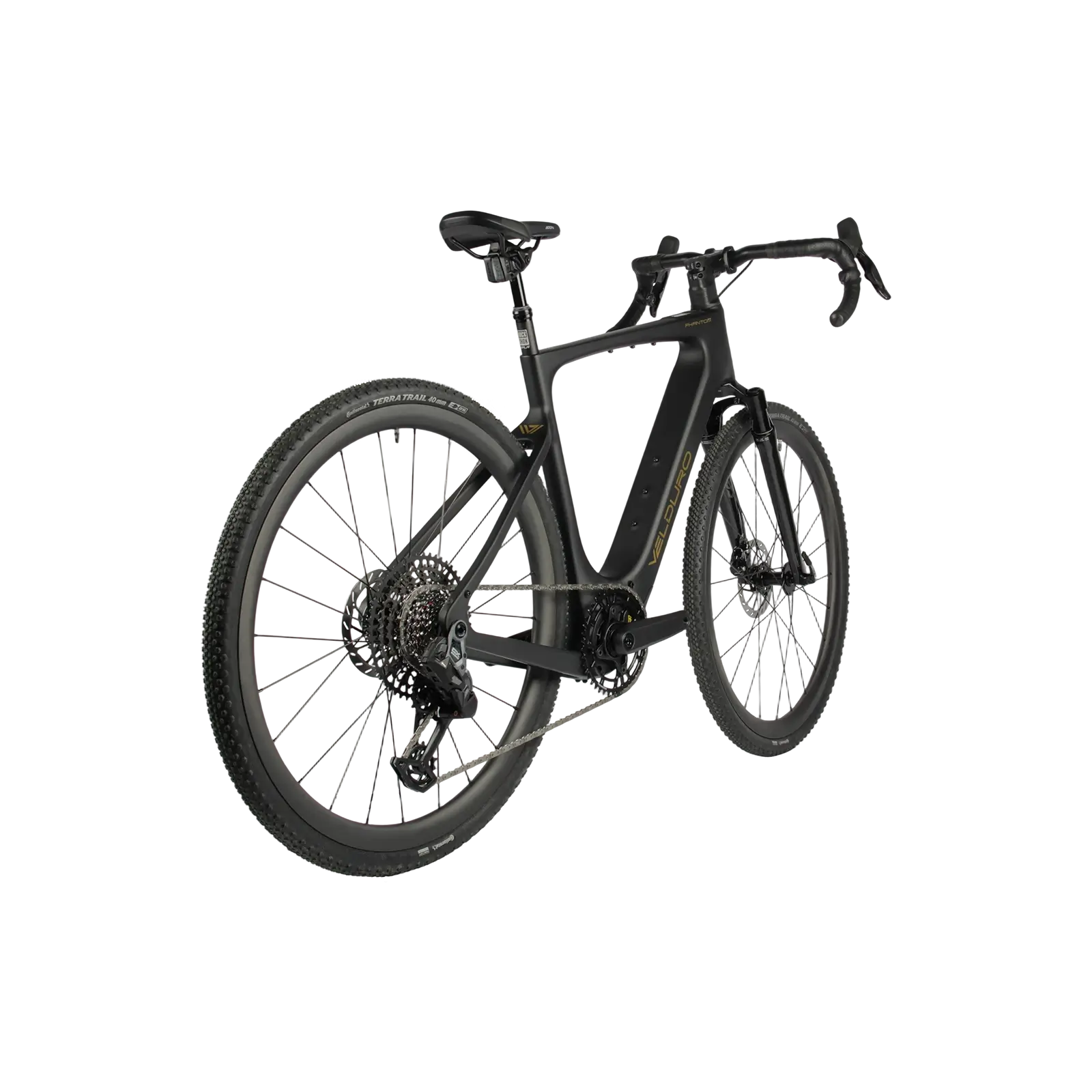

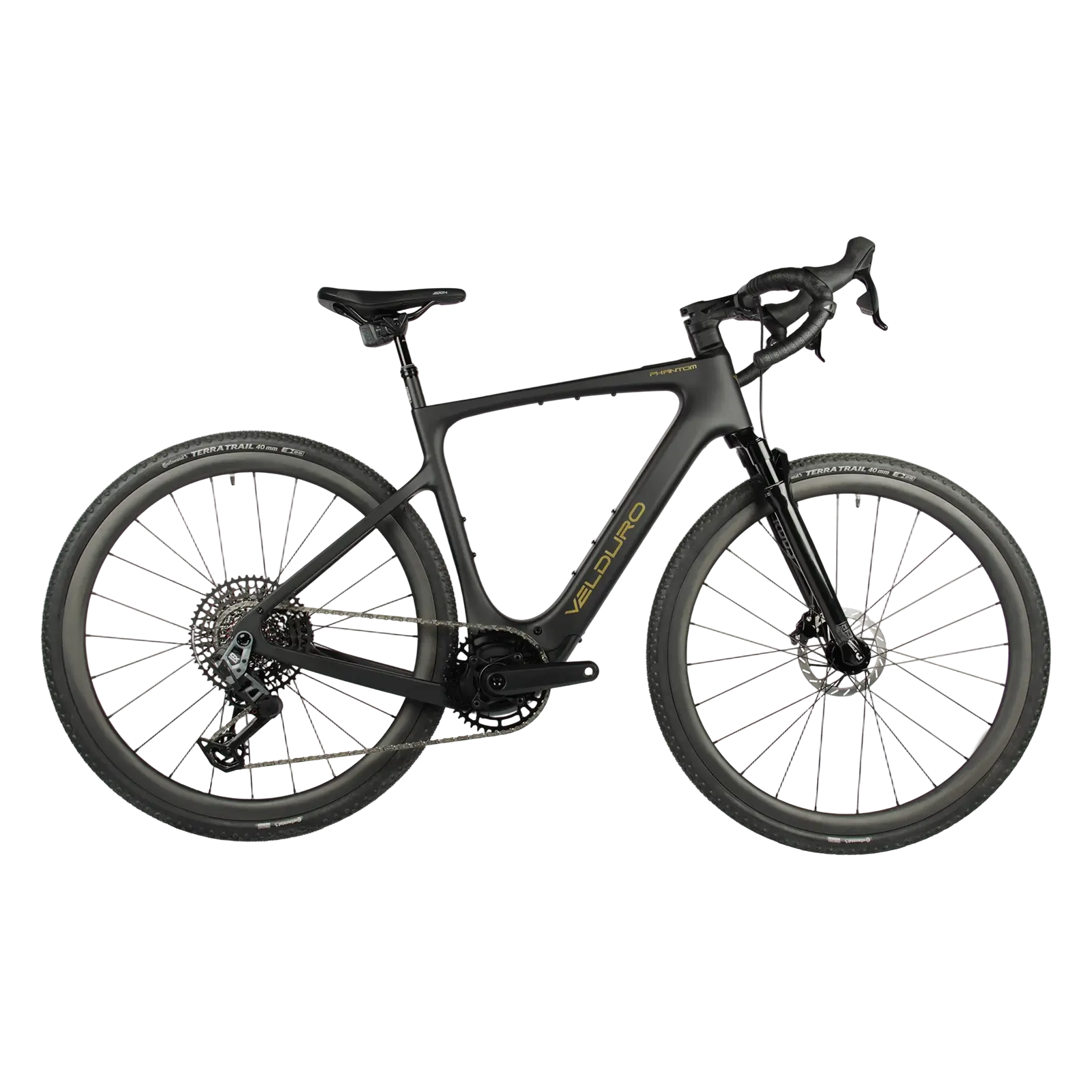

The Phantom R is only available in Europe at this stage.The Phantom R is a gravel’s apex predator. Building on the X’s foundation, it adds a SRAM Rudy suspension fork (40mm travel) and Reverb AXS dropper post to dominate chunky descents and rock gardens. The monolith frame’s reinforced junctions handle suspension loads, while the Avinox system’s Boost mode provides explosive 120 Nm torque for steep, loose climbs. Wide 45c tires, and a 600Wh battery make it a self-sufficient beast for multi-day bikepacking races or back-country missions. This is the bike for riders who want it all.

Size: Small, Medium, Large, Xtra Large

Specification

• Frame: Carbon fibre, gravel category, battery integrated, inner cable routing, 12X142mm, 8
  mounting points, rack compatible
• Fork: Rockshox Rudy ULT 40mm travel700 U GLB 41T A2
• Headset: FSA NO.55R 1.5″ / 558 ACR, Alloy gravel, dia top& bottom 52mm
• Stem: FSA SMR Alloy -6° alloy Length S:70mm M:80mm, L:90mm, XL:100mm
• Saddle: Fizik Terra Aidon X5
• Seatpost: Rockshox Reverb AXS XPLR 27.250mm travel, 400mm length
• Handlebar: Velduro Carbon, Dia31.8, Flare 15°, Width: S/M 420mm, L/XL: 440mm
• Straps: Velduro black gravel strap

• Brakes: Sram Rival AXS HRD Shift-Brake System
• Discs: Srame HS2 extreme duty disc, front 160mm, rear 160mm
• Rear derailleur: Sram Rival XPLR AXS Rear Derailleur with power cable
• Cassette: Sram Rival XPLR XG-1351 13-speed Cassette
• Cranks: Avinox SL 165mm
• Chain: Sram Rival Transmission Flattop Chain
• Spider: Avinox 104BCD spider
• Chainwheel: Velduro customized alloy 44T, 3mm inward

• Wheelset: Easton EC70 AX carbon gravel wheels, 24mm inner width, 21mm depth, XDR freehub
• Tires: Maxxis Rambler 700*45C BLK, with tube
